Wenzhou Jiahao Petroleum Machinery .Ltd

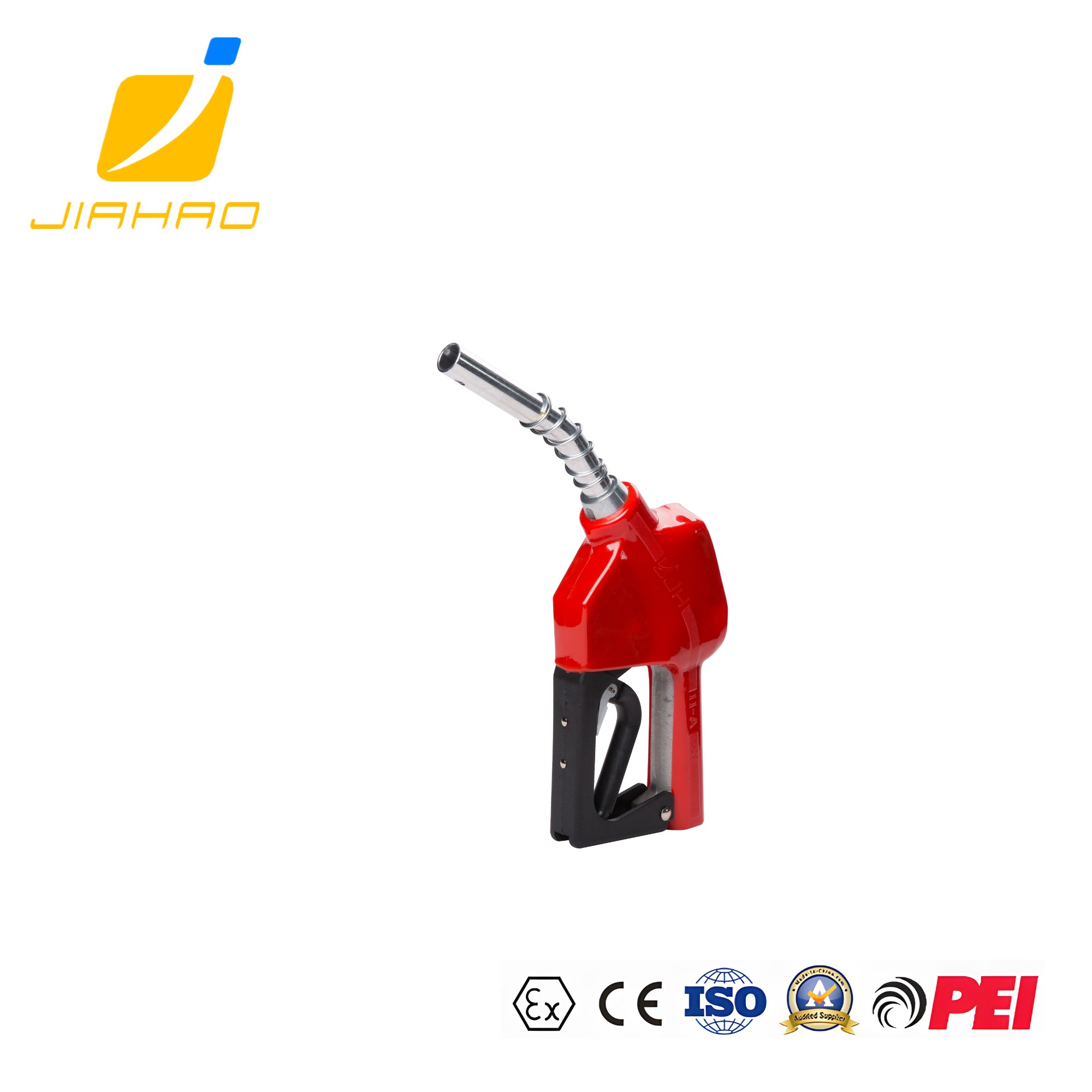

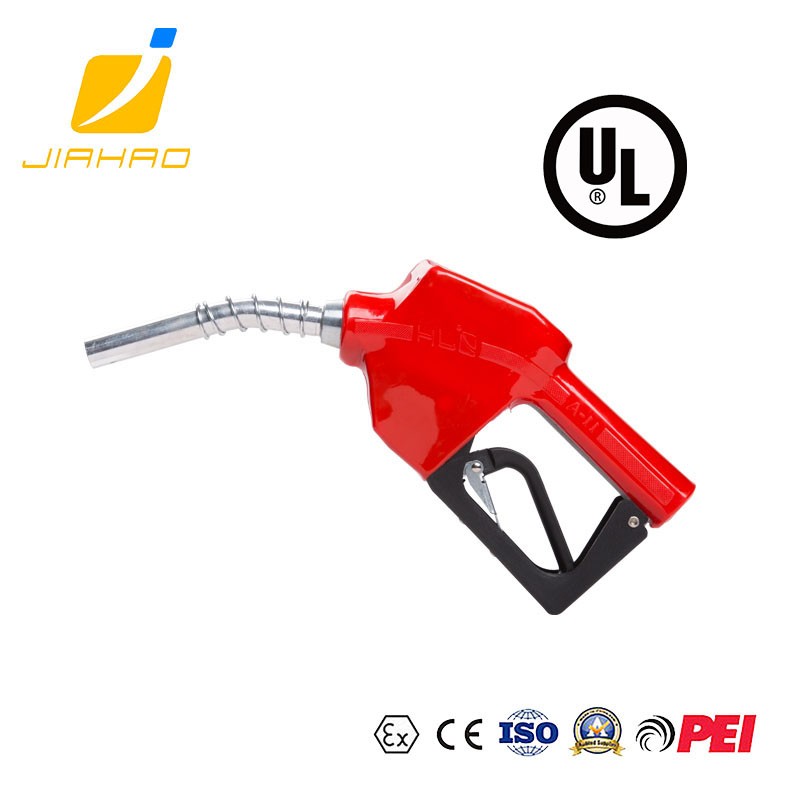

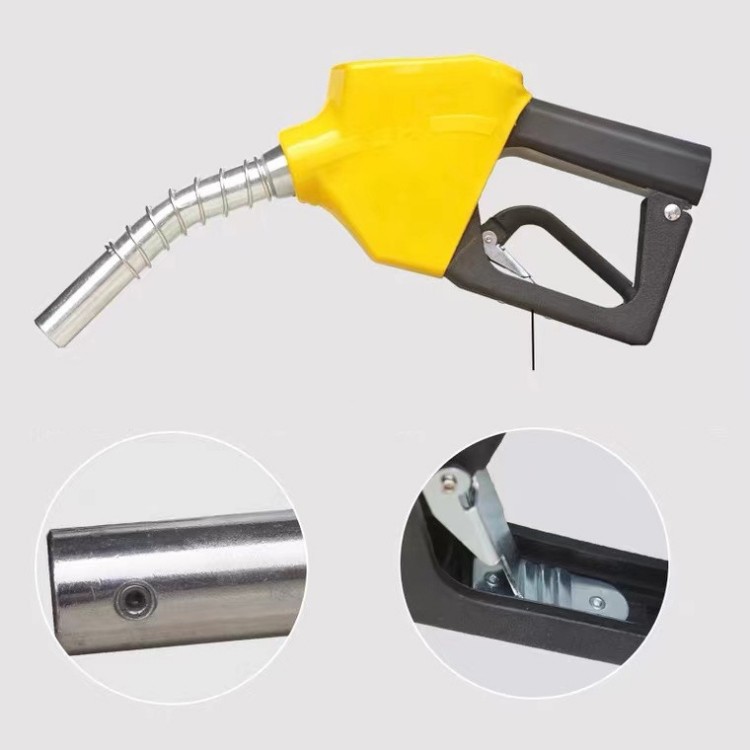

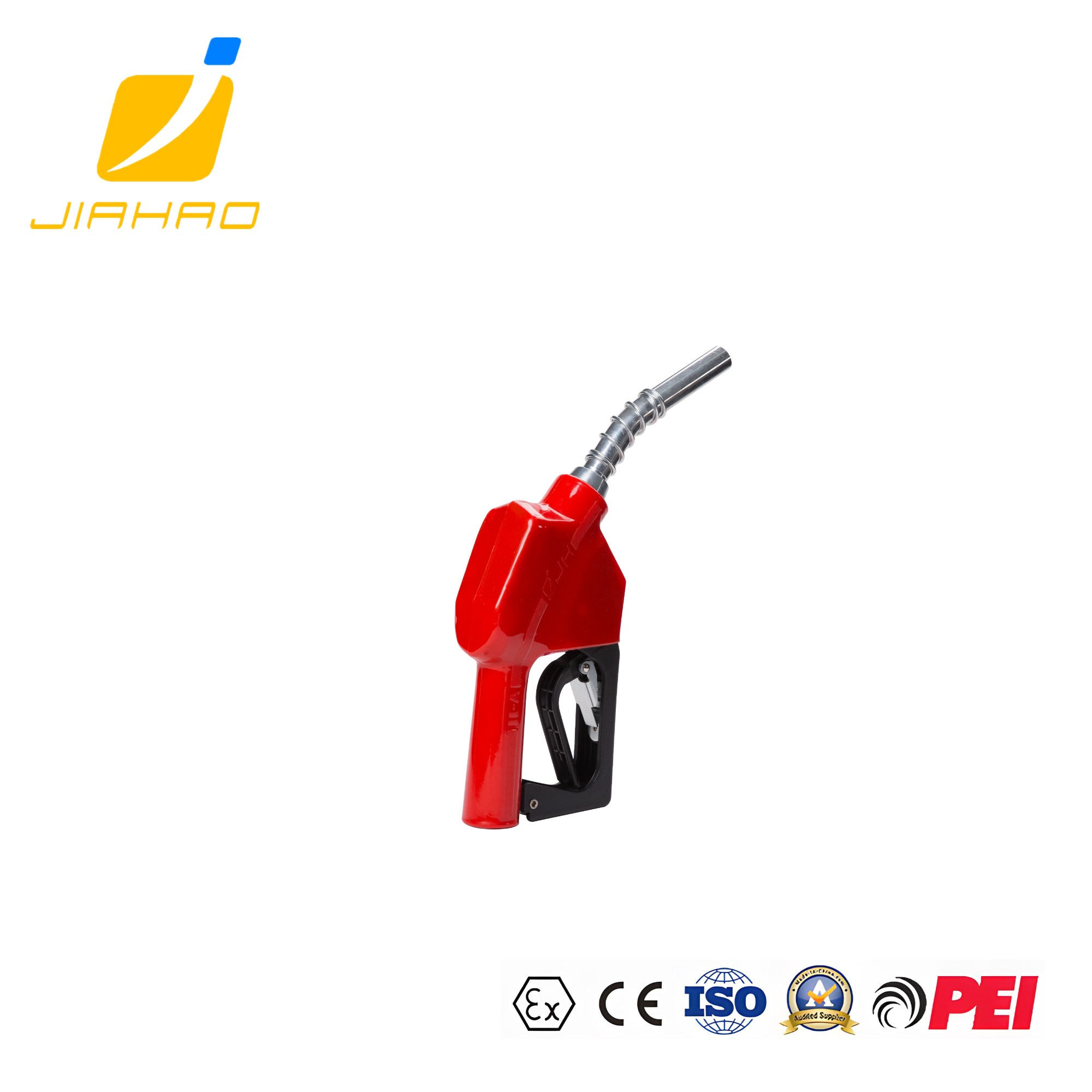

JH-11A OPW AUTOMATIC GASOLINE NOZZLE UL
- Product Detail
JH-11A 3/4'' NPT AUTOMATIC GASOLINE NOZZLE FOR FUEL STATION
- JH-11A Automatic Nozzles are made of alloy aluminum and designed according to customers'requirements Small, light weight, easy and convenient to use;
- The JH-11 Series automatic nozzles are JH's premium conventional nozzles for safe retail and commercial petroleum filling;
- The JH-11 Series is the most trusted conventional nozzle in the world for full service use;
- The JH-11A nozzle has a 3/4" NPT inlet with a 15/16" or 13/16" OD spout which is designed for fueling diesel automobile's and light trucks.
- The lack of a Hold-Open clip allows the nozzle to also be used in marinas.
Features & Benefits
- Low profile aluminum body-light weight, easier to handle, provides an attractive, image enhancing appearance.
- Full hand insulator-protects both nozzle and vehicle, and insulates user's hands.
- Hold-open rack is available for full service application-the one hand control means easy setting to flow rate for customer convenience.
- Easily replaced spout-simply remove the spout retaining screw. Replacement provides and entirely new outlet check valve. Kits are available from TDW.
- Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
- 100% Factory Tested.
MATERIAL
| Body |
Aluminum |
|
Lever and lever guard |
Duratuff |
|
Main stem |
Extra hard stainless steel |
|
Seals |
Buna-N, Viton |
Technical Specification
|
Working Pressure |
0.2Mpa |
|
Auto Shut-off sensibility |
0.1 second |
|
Thread |
BSPF/NPT |
|
Spout Outlet Diameter |
13/16" or 15/16'' |
|
Inlet Size |
3/4" |
|
Flow Rate |
0-45L/min or 0-60L/min |
